Wideband Splitters 1x3 (Satellite+RF) 5-2500 MHz

AED9.00
In stock
Product Model
SPL 1x3 WB
    • Astel Wideband Splitters SPL 1xX WB Series are used in coaxial SAT-IF distribution networks operating with Digital Satellite DVB-S/S2 (QPSK, 8PSK) or in Digital Terrestrial signals (DVB-T/DVB-T2). These splitters features high shielding, heavy weight die cast housing use in SAT-IF and MATV distribution networks

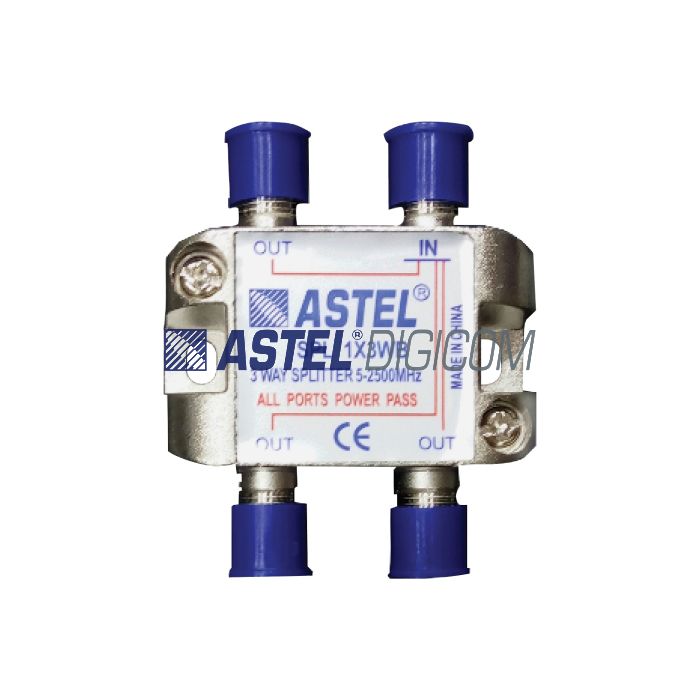

    main product photo
    Astel Wideband Splitters SPL 1xX WB Series are used in coaxial SAT-IF distribution networks operating with Digital Satellite DVB-S/S2 (QPSK, 8PSK) or in Digital Terrestrial signals (DVB-T/DVB-T2). These splitters features high shielding, heavy weight die cast housing use in SAT-IF and MATV distribution networks.
    Splitter divide the input signal into equal parts. Signal is attenuated between Input and Output ports. Depending on the split (1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16), the signal is attenuated between the input and output ports. Higher the split, higher the attenuation. Typically every 1x2 split, attenuates the input by 3.0 dB.

    .

    More Information
    Technical specification
    Main Features

    1) Frequency range 5 MHz up to 2.5 GHz.
    2) All Ports Power Pass.
    3) High shielding of 110 dB.
    4) Zinc die-cast housing with corrosion protection.
    5) High precision machine threaded F-ports.
    6) Built in Diode for protection of TV and STB (from Surge and lightning protection).
    7) All splitters with 13/18V, 22 kHz pass through for SAT band switching and remote feeding.
    8) DC/AC pass trough max. 25 V/0,5 A over all IN-OUT ports.
    9) F- female connectors

    Parameter Freq Range 2 way SPL1X2WB 3 way SPL1X3WB 4 way SPL1X4WB 6 way SPL1X6WB 8 way SPL1X8WB
    Insertion Loss In-Out (dB) 5-40 MHz 4.5 7.5 8.5 11.5 12.5
    40-1000 MHz 4.5 8.0 9.0 12.0 13.5
    1000-1750 MHz 6.0 10.0 11.5 14.5 16.5
    1750-2500 MHz 7.0 12.5 14.5 19.5 21.0
    Return Loss In-Out (dB) 5-40 MHz 10.0 10.0 10.0 10.0 10.0
    40-1000 MHz 11.0 11.0 10.0 10.0 10.0
    1000-1750 MHz 11.0 11.0 10.0 10.0 10.0
    1750-2500 MHz 10.0 10.0 10.0 10.0 10.0
    Isolation Out-Out (dB) 5-40 MHz 14.0 19.0 18.0 20.0 18.0
    40-1000 MHz 20.0 20.0 20.0 20.0 20.0
    1000-1750 MHz 20.0 20.0 20.0 20.0 20.0
    1750-2500 MHz 20.0 20.0 20.0 18.0 17.0



    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
